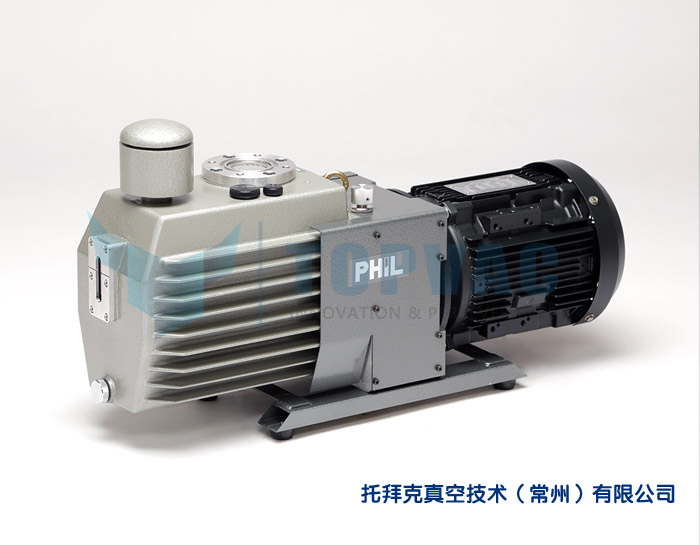

DW-360
| 排氣速度Pumping speed | L/min | 50Hz | 60Hz | |
| 300 | 360 | |||
| 到達壓力 | Pa | 6.7×10 —2 | ||
| 6.7 | ||||
| 電動機出力Motor power | W | 750 | ||
| 電 壓Voltage | V | 3φ200V | ||
| 回轉數(shù)Rated rotational speed | min —1 | 50Hz | 60Hz | |
| 1440 | 1730 | |||
| 油 量Oil capacity | L | 2.2 | ||
| 寸 法Dimensions | mm | W | 597 | |
| D | 244 | |||
| H | 358 | |||
| 吸氣口徑Inlet | mm | 30 | ||
| 質 量Weight | kg | 34 | ||
| (選配)油霧處理器Oil mist trap (Option) | 標準型Standard type | CT-D-300 | ||
| 在線型Directional type | CT-C-300 | |||
